SaltyCells Fitment Kit

Name: SaltyCells Fitment Kit
Brand: Salty Cells
SKU: SC-FK01
Price: 34.95 AUD
Availability: LimitedAvailability

Hold down clamp and riser strips · Suits every SaltyCells starter battery

SaltyCells Fitment Kit: adjustable hold down clamp, two 245mm J bolts with wing nuts, and six black HDPE riser strips

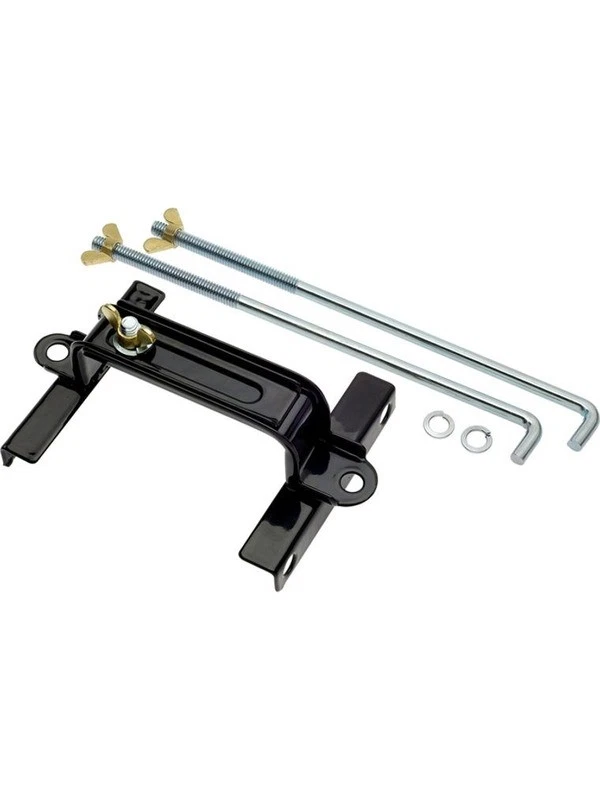

The adjustable hold down clamp supplied in the kit

✓ 30 Day Returns ✓ ACL Protected ✓ Ships With Your Battery

SC-FK01 Limited stock

Everything you need to sit your SaltyCell at the right height and lock it firmly in the tray. SaltyCells batteries are lighter and can sit a little lower than the lead acid battery they replace, which can leave your factory clamp short of the case. The Fitment Kit closes that gap.

A$34.95 inc. GST

130 to 190

Clamp width (mm)

245mm

J bolts

10 / 20 / 30

Lift (mm)

~1.0kg

Kit weight

Buy the Fitment Kit · A$34.95 →

Buying a battery too? Use the Buy with Fitment Kit button on your battery's page and both ship together.

In the kit:

Adjustable hold down clamp: black coated steel crossbar, suits batteries 130 to 190mm wide (every SaltyCells battery is 174 to 175mm wide)
Two zinc plated J bolts, 245mm long, with brass wing nuts and spring washers
Six black HDPE riser strips, 170 x 60 x 10mm, stackable for 10, 20 or 30mm of lift

Suits: SC-NA1260 · SC-NA1260L · SC-NA1270-280 · SC-NA1280 · SC-EU1280. On the SC-NA1280 (220mm tall) use up to 20mm of lift with the supplied bolts.

Why a Fitment Kit

A Firm Fit in Any Tray

Closes the Height Gap

A SaltyCell can sit 10 to 30mm lower than the lead acid battery it replaces. Stack the strips to bring the top of the case back up to where your clamp and cables expect it.

Why HDPE

The riser strips are rigid, non conductive and resistant to oil and battery acid, so they will not compress over time and let the clamp work loose.

Top Clamp Included

Many European cars hold the battery by a ledge at the base. Once the battery is raised, that ledge no longer grips, so the kit includes a top clamp and J bolts to hold it down.

Fitting

How to Fit the Kit

Measure the gap

Sit the battery in the tray and measure from the top of the case to where the factory clamp sits. Choose 10, 20 or 30mm of lift (one, two or three strips per stack).

Place the risers

Put one stack of strips under each end of the battery so the case is supported evenly.

Seat the battery

Sit the battery on the strips with the terminals on the correct side for your cables.

Clamp it down

Hook the J bolts under the tray edge, fit the crossbar across the top and tighten the wing nuts until the battery cannot move when pushed.

Check clearance

Close the bonnet gently and confirm it clears the terminals and the clamp before you connect the cables. See the full installation guide.
